Обзор: синевуп HGLRC Veyron 3 (с воздушным модулем Caddx Vista для DJI HD FPV)

Это обзор синевупа Veyron 3 от HGLRC. Покажу его со всех сторон и расскажу как про достоинства, так и про недостатки. В самом конце опишу как подготовить коптер к первому полету.

Оригинал: Review: HGLRC Veyron 3 Cinewhoop (w/ Caddx Vista DJI Air Unit)

Полезная информация: Что такое синевуп?

Где купить?

Есть две версии — для 4S и 6S, разница в моторах (4S — 3600kv, 6S — 2400kv).

Veyron 3 упакован в большую бумажную коробку.

Комплектация:

  • Синевуп Veyron 3
  • Антенна с разъемом SMA и для видеопередатчика с разъемом MMCX
  • 3 ремешка для аккумуляторов
  • Крепление для GoPro Hero7 из TPU
  • Пластиковые трубки для антенны приёмника
  • Запасные винты для моторов и гайки для пропеллеров
  • Инструкция и наклейки

Характеристики

  • Полётный контроллер + регуляторы скорости: Zeus35 F4 FC 35A ESC AIO
  • Моторы: Forward 1408 3600KV
  • Пропы: 3045 Tri-blade
  • FPV оборудование: Caddx Vista (камера + VTX для DJI FPV system)
  • Приёмник: Frsky XM+
  • Рама позволяет поставить оборудование как для аналогового видео, так и для цифрового
  • Вес:
    • 262 г
    • 396 г с GoPro Hero 7
    • 521 г с GoPro 7 и 4S 1050mAh LiPo

Комплектное крепление для Hero 7 производит хорошее впечатление, однако угол наклона слишком большой для синевупов, похоже, что его разрабатывали для гоночных дронов. Думаю, что 5-10 градусов будет более чем достаточно, так что я попросил производителя в будущем использовать крепеж с меньшим углом. В ответ мне прислали STL файл такого крепежа, так что я смог распечатать его самостоятельно.

Несколько фотографий коптера:

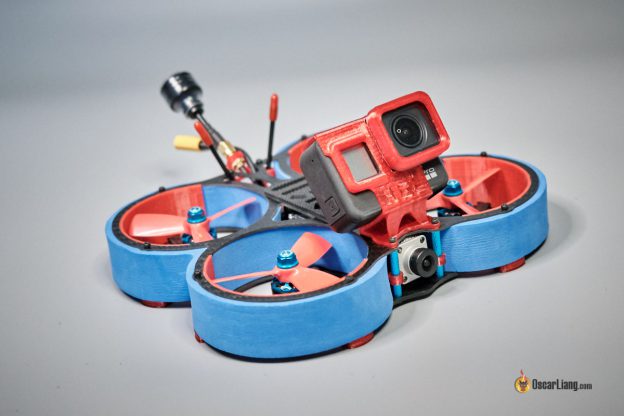

HGLRC Veyron3 крупным планом

Сейчас Veyron 3 можно купить только с аналоговым FPV оборудованием (Forward MT Mini 600mW VTX + камера Caddx Ratel).

Но образец, который я получил, шел в комплекте с Caddx Vista. Это курсовая камера и видеопередатчик специально разработанные для цифровой системы DJI. Сейчас на сайте HGLRC я не вижу возможности купить такой набор, надеюсь он появится в ближайшем будущем.

В любом случае, эта ситуация говорит о том, что рама поддерживает как аналоговое, так и цифровое видео. Раму можно купить и отдельно: https://www.hglrc.com/products/hglrc-veyron-3-cinewhoop-frame-kit

Крепеж антенны напечатан из TPU, как и крепеж GoPro. Внизу есть неиспользуемые детали, они предназначен для антенны Crossfire Immortal T (можно снять, если вы не используете Crossfire).

Отличная площадка для аккумулятора, не скользит. Контакты питания немного торчат вниз, беспокоюсь, как бы трава не закоротила их. ИМХО лучшее решение — покрыть контакты лаком (англ), даже лучше всю нижнюю сторону полётника. Или просто наклеить изоленту.

Перевернув коптер, видим, что рама поддерживает стеки формата 20х20мм и 16х16мм.

Дакты хорошо защищены плотным поролоном. Моторы FD1408 3600KV от HGLRC.

Разбираем Veyron 3

На верхней пластине 14 винтиков. Чтобы было комфортно работать с такой рамой, обязательно купите аккумуляторную отвертку 🙂 Позже поблагодарите.

Толщина верхней пластины 1,5 мм, нижней — 2 мм.

Расстояние между пропами и дактами очень маленькое, очевидно, что после падения пропы поцарапают поролон. Хотя его легко можно отогнуть.

Дизайн у Veyron 3 довольно уникальный, дакты полукруглые (а не полный круг, как на других синевупах) и напечатаны на принтере. Возможно это сделано для экономии веса и упрощения производства. На данный момент этот коптер пережил несколько небольших падений и могу сказать, что поролон хорошо работает, поглощает удар. Рама не гнется.

Похоже, что печатали из PLA, очень прочно получилось.

Полётник Zeus35 от HGLRC сделан для этого коптера 🙂

Это плата, на которой есть не только сам ПК, но и 4 регулятора скорости на 35А. Она настолько низкая, что позволяет поставить в стек Caddx Vista.

Однако, без частичной разборки рамы и снятия верхней пластины доступа к USB разъему нет, так что настройка немного усложняется. Возможно, поможет угловой USB кабель, но я еще не пробовал.

Следовательно, для настройки нужно использовать LUA скрипты в пульте управления. Конечно, можно менять PID при помощи Betaflight OSD, но LUA скрипты дают гораздо больше возможностей.

К контактам питания уже припаян low-ESR конденсатор на 220 мкФ 35 вольт. Похоже, что точно такой же поставляется в комплекте с Zeus35.

Помимо резиновых шайб для установки полетного контроллера используются резиновые колечки с обеих сторон платы.

Качество пайки хорошее.

К сожалению в том экземпляре что я получил антенна модуля Caddx Vista не была подсоединена. Если вы не проверите контакт перед включением коптера, то теоретически можете спалить видеопередатчик. Я сообщил об этом производителю, надеюсь в будущем они улучшат контроль качества.

Вот так Виста подключается к полетному контроллеру.

Хорошо, что выход SBUS Висты уже подключен ко входу SBUS на полетнике. Т.е. если вы решите использовать пульт управления от DJI, то ничего паять не придется, нужно будет просто настроить Betaflight.

Настройка для первого полета

Первое что я сделал — заменил приёмник XM+ на Crossfire Nano. Предпочитаю иметь надежную связь, особенно там куда я ставлю GoPro за $300 🙂

Дополнительная информация: руководство для тех, кто только собирается использовать Crossfire.

Значения PID и рейтов по умолчанию не очень, так что придется настраивать самостоятельно. Ниже будет мой конфиг.

Чуть позже обновлю пост и добавлю видео (как только погода позволит, а то дождь и ветер не прекращаются неделями).
